OTHERS: Rock Pi 4A – 固件下载

~ 发表回复
  • 通过USB下载固件

1。进入rockusb 模式

2。使用 rkdeveloptool工具下载

  • rockusb模式

在rockusb模式下，可通过rkdeveloptool：

– 对eMMC/sdcard/SPI nor flash做读写操作

– 可获取存储设备信息

– 获取分区表信息

– 获取芯片信息

– 重启

进入rockusb模式的方法：

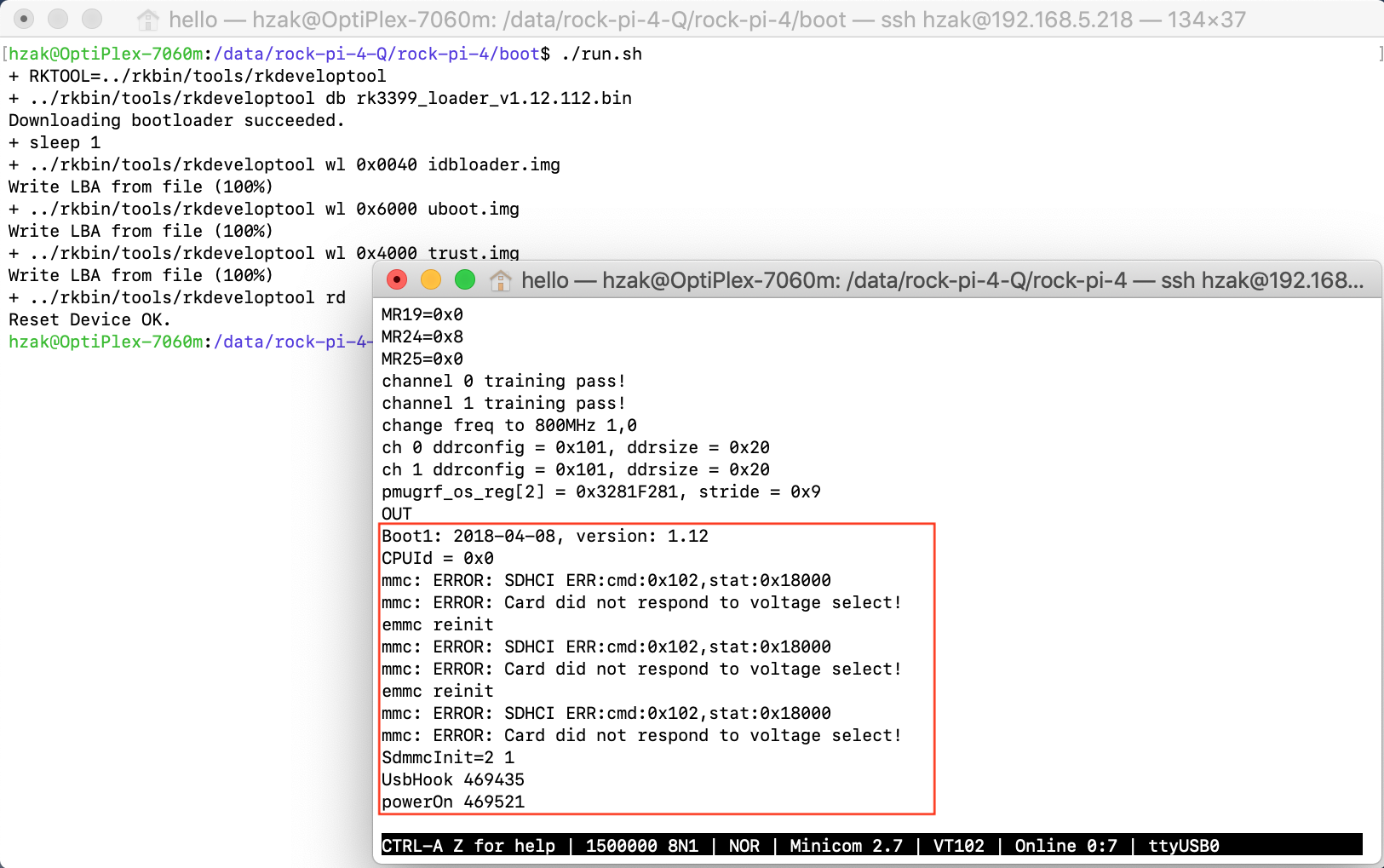

1。 通过maskrom模式进入：

– 通过rkdeveloptool 加载bootloader (rk3399_loader_v1.12.112.bin) 进入rockusb模式

$ ../rkbin/tools/rkdeveloptool db rk3399_loader_v1.12.112.bin

2。通过u-boot中的rockusb命令进入

  • 固件下载

对于只使用sdcard作为启动设备的情况，目前看来只能通过先将idbloader.img, uboot.img及trust.img通过读卡器写入到sdcard：

如：

#! /bin/bash

dd if=/dev/zero of=/dev/sdc bs=$((1024*1024)) count=16 conv=notrunc

dd if=idbloader.img of=/dev/sdc bs=512 seek=$((0x40)) conv=notrunc
dd if=uboot.img of=/dev/sdc bs=512 seek=$((0x4000)) conv=notrunc
dd if=trust.img of=/dev/sdc bs=512 seek=$((0x6000)) conv=notrunc

写入完之后，第一次开机如果找不到gpt分区表，会重新创建分区表：

DDR Version 1.22 20190506
In
channel 0
CS = 0
MR0=0x98
MR4=0x3
MR5=0xFF
MR8=0x8
MR12=0x72
MR14=0x72
MR18=0x0
MR19=0x0
MR24=0x8
MR25=0x0
channel 1
CS = 0
MR0=0x98
MR4=0x3
MR5=0xFF
MR8=0x8
MR12=0x72
MR14=0x72
MR18=0x0
MR19=0x0
MR24=0x8
MR25=0x0
channel 0 training pass!
channel 1 training pass!
change freq to 416MHz 0,1
Channel 0: LPDDR4,416MHz
Bus Width=32 Col=10 Bank=8 Row=15 CS=1 Die Bus-Width=16 Size=1024MB
Channel 1: LPDDR4,416MHz
Bus Width=32 Col=10 Bank=8 Row=15 CS=1 Die Bus-Width=16 Size=1024MB
256B stride
channel 0
CS = 0
MR0=0x98
MR4=0x3
MR5=0xFF
MR8=0x8
MR12=0x72
MR14=0x72
MR18=0x0
MR19=0x0
MR24=0x8
MR25=0x0
channel 1
CS = 0
MR0=0x98
MR4=0x81
MR5=0xFF
MR8=0x8
MR12=0x72
MR14=0x72
MR18=0x0
MR19=0x0
MR24=0x8
MR25=0x0
channel 0 training pass!
channel 1 training pass!
channel 0, cs 0, advanced training done
channel 1, cs 0, advanced training done
change freq to 856MHz 1,0
ch 0 ddrconfig = 0x101, ddrsize = 0x20
ch 1 ddrconfig = 0x101, ddrsize = 0x20
pmugrf_os_reg[2] = 0x3281F281, stride = 0x9
OUT
Boot1: 2019-03-14, version: 1.19
CPUId = 0x0
ChipType = 0x10, 254
mmc: ERROR: SDHCI ERR:cmd:0x102,stat:0x18000
mmc: ERROR: Card did not respond to voltage select!
emmc reinit
mmc: ERROR: SDHCI ERR:cmd:0x102,stat:0x18000
mmc: ERROR: Card did not respond to voltage select!
emmc reinit
mmc: ERROR: SDHCI ERR:cmd:0x102,stat:0x18000
mmc: ERROR: Card did not respond to voltage select!
SdmmcInit=2 1
mmc0:cmd5,20
SdmmcInit=0 0
BootCapSize=0
UserCapSize=30436MB
FwPartOffset=2000 , 0
StorageInit ok = 56385
SecureMode = 0
SecureInit read PBA: 0x4
SecureInit read PBA: 0x404
SecureInit read PBA: 0x804
SecureInit read PBA: 0xc04
SecureInit read PBA: 0x1004
SecureInit read PBA: 0x1404
SecureInit read PBA: 0x1804
SecureInit read PBA: 0x1c04
SecureInit ret = 0, SecureMode = 0
atags_set_bootdev: ret:(0)
GPT 0x3380ec0 signature is wrong
recovery gpt...
GPT part:  0, name:          loader1, start:0x40, size:0x1f40
GPT part:  1, name:          loader2, start:0x4000, size:0x2000
GPT part:  2, name:            trust, start:0x6000, size:0x2000
GPT part:  3, name:             boot, start:0x8000, size:0x38000
GPT part:  4, name:           rootfs, start:0x40000, size:0x3b323df
recovery gpt success!
no find partition:uboot.
LoadTrust Addr:0x4000
No find bl30.bin
No find bl32.bin
Load uboot, ReadLba = 2000
hdr 0000000003380880 + 0x0:0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,

Load OK, addr=0x200000, size=0xc98f4
RunBL31 0x10000
NOTICE:  BL31: v1.3(debug):0e7a845
NOTICE:  BL31: Built : 16:13:46, Apr 17 2019
NOTICE:  BL31: Rockchip release version: v1.1
INFO:    GICv3 with legacy support detected. ARM GICV3 driver initialized in EL3
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    plat_rockchip_pmu_init(1181): pd status 3e
INFO:    BL31: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader, Booting device without OPTEE initialization. SMC`K
ERROR:   Error initializing runtime service opteed_fast
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0x200000
INFO:    SPSR = 0x3c9


U-Boot 2017.09-00011-g0568348 (Jul 22 2019 - 01:28:51 +0800)

Model: ROCK PI 4 Board
DRAM:  2 GiB
Relocation Offset is: 7dc05000
PMIC:  RK808
pwm-regulator(vdd-center): init 950000 uV
vdd_center 950000 uV
regulator(vdd-center) init 950000 uV
MMC:   dwmmc@fe320000: 1, sdhci@fe330000: 0
Using default environment

Warn: can't find connect driver
Failed to found available display route
Warn: can't find connect driver
Failed to found available display route
In:    serial
Out:   serial
Err:   serial
Model: ROCK PI 4 Board
Enable PCIE Power for ROCKPI4 board
rk3399_force_pcie_power_on: trying to force pcie power on
RKPARM: Invalid parameter part table
switch to partitions #0, OK
mmc1 is current device
do_rkimg_test found IDB in SDcard
Boot from SDcard
RKPARM: Invalid parameter part table
get part misc fail -1
Net:   eth0: ethernet@fe300000
Hit any key to stop autoboot:  0
switch to partitions #0, OK
mmc1 is current device
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
RKPARM: Invalid parameter part table
** No partition table - mmc 1 **
Card did not respond to voltage select!
mmc_init: -95, time 26
starting USB...
USB0:   USB EHCI 1.00
USB1:   USB OHCI 1.0
USB2:   USB EHCI 1.00
USB3:   USB OHCI 1.0
USB4:   Can't get the usbphy register address
probe failed, error -6
USB5:   Can't get the usbphy register address
probe failed, error -6
scanning bus 0 for devices... 1 USB Device(s) found
scanning bus 1 for devices... 1 USB Device(s) found
scanning bus 2 for devices... 1 USB Device(s) found
scanning bus 3 for devices... 1 USB Device(s) found
       scanning usb for storage devices... 0 Storage Device(s) found

Device 0: unknown device
DMA reset timeout
missing environment variable: pxeuuid
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/01-26-1f-c5-4c-71-80
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/00000000
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/0000000
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/000000
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/00000
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/0000
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/000
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/00
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/0
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/default-arm-rockchip
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/default-arm
DMA reset timeout
missing environment variable: bootfile
Retrieving file: pxelinux.cfg/default
DMA reset timeout
Config file not found
DMA reset timeout
DMA reset timeout
Card did not respond to voltage select!
mmc_init: -95, time 19
Could not get mmc 0
Card did not respond to voltage select!
mmc_init: -95, time 18
do_boot_rockchip: dev_desc is NULL!
=> <INTERRUPT>

可以看到，之后可以进入到u-boot命令行交互模式。

注：

1。 从目前来看，从maskrom模式进入rockusb模式时，可能只能读写eMMC设备，并且也没有找到相关的命令使rkdeveloptool写入到特定的设备。

2。通地rkdeveloptool加载rk3399_loader_spinor_v1.15.114.bin 应该是对SPI flash进行读写操作（我手头上这块板子虽然是v1.4的版本，但没有SPI flash，无法验证。

3。在这种模式下，看起来CPU与DDR在全速运行，需要注意散热。

  • u-boot相关命令

1。 printenv

=> printenv
arch=arm
baudrate=1500000
board=evb_rk3399
board_name=evb_rk3399
boot_a_script=load ${devtype} ${devnum}:${distro_bootpart} ${scriptaddr} ${prefix}${script}; source ${scriptaddr}
boot_efi_binary=load ${devtype} ${devnum}:${distro_bootpart} ${kernel_addr_r} efi/boot/bootaa64.efi; if fdt addr ${fdt_addr_r}; then bootefi $i
boot_extlinux=sysboot ${devtype} ${devnum}:${distro_bootpart} any ${scriptaddr} ${prefix}extlinux/extlinux.conf
boot_net_usb_start=usb start
boot_prefixes=/ /boot/
boot_script_dhcp=boot.scr.uimg
boot_scripts=boot.scr.uimg boot.scr
boot_targets=mmc1 mmc0 usb0 pxe dhcp
bootargs=sdfwupdate storagemedia=sd androidboot.mode=sd
bootcmd=run distro_bootcmd;boot_android ${devtype} ${devnum};bootrkp;
bootcmd_dhcp=run boot_net_usb_start; if dhcp ${scriptaddr} ${boot_script_dhcp}; then source ${scriptaddr}; fi;setenv efi_fdtfile ${fdtfile}; s;
bootcmd_mmc0=setenv devnum 0; run mmc_boot
bootcmd_mmc1=setenv devnum 1; run mmc_boot
bootcmd_pxe=run boot_net_usb_start; dhcp; if pxe get; then pxe boot; fi
bootcmd_usb0=setenv devnum 0; run usb_boot
bootdelay=1
cpu=armv8
cpuid#=544e4d3237372e3030000000000d0085
devnum=0
devplist=1
devtype=mmc
distro_bootcmd=for target in ${boot_targets}; do run bootcmd_${target}; done
efi_dtb_prefixes=/ /dtb/ /dtb/current/
ethact=ethernet@fe300000
ethaddr=26:1f:c5:4c:71:80
fdt_addr_r=0x01f00000
fdt_overlay_addr_r=0x01e00000
fdtcontroladdr=7bdefe18
fdtfile=rockchip/rockpi-4b-linux.dtb
hw_conf_addr_r=0x00700000
kernel_addr_r=0x02080000
load_efi_dtb=load ${devtype} ${devnum}:${distro_bootpart} ${fdt_addr_r} ${prefix}${efi_fdtfile}
mmc_boot=if mmc dev ${devnum}; then setenv devtype mmc; run scan_dev_for_boot_part; fi
partitions=uuid_disk=${uuid_gpt_disk};name=loader1,start=32K,size=4000K,uuid=${uuid_gpt_loader1};name=loader2,start=8MB,size=4MB,uuid=${uuid_g;
pxefile_addr_r=0x00600000
ramdisk_addr_r=0x0a200000
rkimg_bootdev=if mmc dev 1 && rkimgtest mmc 1; then setenv devtype mmc; setenv devnum 1; echo Boot from SDcard;elif mmc dev 0; then setenv dev
scan_dev_for_boot=echo Scanning ${devtype} ${devnum}:${distro_bootpart}...; for prefix in ${boot_prefixes}; do run scan_dev_for_extlinux; run ;
scan_dev_for_boot_part=part list ${devtype} ${devnum} -bootable devplist; env exists devplist || setenv devplist 1; for distro_bootpart in ${de
scan_dev_for_efi=setenv efi_fdtfile ${fdtfile}; for prefix in ${efi_dtb_prefixes}; do if test -e ${devtype} ${devnum}:${distro_bootpart} ${pree
scan_dev_for_extlinux=if test -e ${devtype} ${devnum}:${distro_bootpart} ${prefix}extlinux/extlinux.conf; then echo Found ${prefix}extlinux/exi
scan_dev_for_scripts=for script in ${boot_scripts}; do if test -e ${devtype} ${devnum}:${distro_bootpart} ${prefix}${script}; then echo Found e
scriptaddr=0x00500000
serial#=19966aae93c9e2d5
soc=rockchip
stderr=serial,vidconsole
stdout=serial,vidconsole
usb_boot=usb start; if usb dev ${devnum}; then setenv devtype usb; run scan_dev_for_boot_part; fi
vendor=rockchip

Environment size: 4570/32764 bytes

2。mmcinfo 当前mmc设备信息（我使用是sankdisk 32G TF卡）：

=> mmcinfo
Device: dwmmc@fe320000
Manufacturer ID: 3
OEM: 5344
Name: SC32G
Timing Interface: Legacy
Tran Speed: 50000000
Rd Block Len: 512
SD version 3.0
High Capacity: Yes
Capacity: 29.7 GiB
Bus Width: 4-bit
Erase Group Size: 512 Bytes

3。mmc list

=> mmc list
dwmmc@fe320000: 1 (SD)
sdhci@fe330000: 0

4。rockusb (进入rockusb 模式）

=> rockusb 0 mmc 1
RKUSB: LUN 0, dev 1, hwpart 0, sector 0x0, count 0x3b72400

这时，我们就可以通过rkdeveloptool对sdcard进行读写操作了，如：

$ time ../rkbin/tools/rkdeveloptool rl 0 0x80000 sdcard_256MiB.bin
Read LBA to file (100%)

real	0m20.799s
user	0m0.254s
sys	0m0.982s

读写速度差不多在12MiB左右。

  • 相关的参考文档

http://opensource.rock-chips.com/wiki_Rockusb

相关文档：

  1. Others: New toy – Rock Pi 4A
  2. Android: badvpn中使用的LwIP的版本及tun2socks工作原理
  3. Others: 关于libev – 相关资源
  4. Others: 由FriendlyElec出品的NanoPi NEO
  5. Others: Android Q on NanoPi Neo – bootloader & kernel 一

发表评论

电子邮件地址不会被公开。 必填项已用*标注
