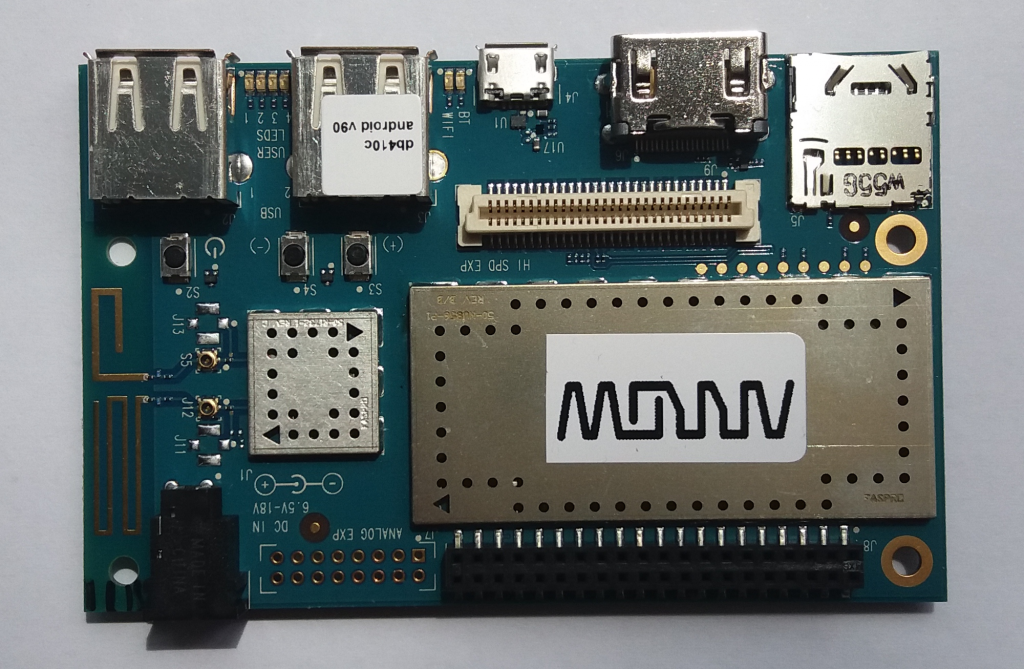

终于下定决心，买了块高通DragonBoard 410c。老实说DragonBoard 410c出来已经有好长一段时间了，为什么迟迟不下手，只因性价比太低。相对于RPi 2B来说，只因多了ＷiFi与Bluetooth，但价格要高上好几倍，而brillo系统完全可以在RPi 2B上跑起来。而brillo系统也已经到m10版本了，思来想去，还是觉得应该买一块可以安装brillo原生系统的开发板，以便做对比开发。
作为google brillo系统的starter board, 意味着你可以不修改一行代码，就可以让brillo系统在这块板子上跑起来。下面，我们来看一下如何下载，编译可以在DragonBoard 410c上跑起来的brillo-m10-dev系统。
产品链接在此：https://developer.qualcomm.com/hardware/dragonboard-410c
- 开发环境：
主机: ubuntu 14.04 x86_64系统。
- 代码下载
google brillo项目代码下载：
$ mkdir -pv /local/brillo-m10-dev-410c && cd /local/brillo-m10-dev-410c $ repo init -u https://android.googlesource.com/brillo/manifest -b brillo-m10-dev
将.repo/manifest.xml中与dragonboard相关的代码删除：
<!-- Qualcomm Dragonboard --> <!-- <project path="device/qcom/dragonboard" name="device/qcom/dragonboard" groups="dragonboard" /> <project path="hardware/bsp/qcom" name="platform/hardware/bsp/qcom" groups="dragonboard" /> <project path="hardware/bsp/kernel/qcom/qcom-msm-3.10" name="platform/hardware/bsp/kernel/qcom/qcom-msm-v3.10" groups="dragonboard" /> -->
不然下载安装bsp包的时候会有如下问题（由于device/qcom/dragonboard, hardware/bsp/qcom, hardware/bsp/kernel/qcom文件夹已经存在，安装bsp包时不会去覆盖这些文件夹下的文件）：
Do you accept this license (Y/n)?
Y
Qualcomm Dragonboard 410c - Unrecognized
* qcom_dragonboard_bsp_code
* device - Unrecognized
* hardware_base - Unrecognized
* hardware_kernel - Unrecognized
* qcom_dragonboard_bsp_binaries
* vendor_binaries - Installed
The following paths exist but do not link to BSP packages:
* /local/brillo-m10-dev-410c/device/qcom/dragonboard
* /local/brillo-m10-dev-410c/hardware/bsp/qcom
* /local/brillo-m10-dev-410c/hardware/bsp/kernel/qcom
If this is not intentional, consider removing them and installing again.
NOTE：实际上是创建软链接：
hzak@B85RPI:/local/brillo-m10-dev-410c$ ls -l device/qcom/
total 4
lrwxrwxrwx 1 hzak hzak 117 Mar 21 10:43 dragonboard -> /home/hzak/.brillo/.BSPs/1acd91d23b243a9654912fe9e70686ebe4c410dbeef9245134945b3c96779a3e/bdk/device/qcom/dragonboard
下载下来的文件保存在~/.brillo下，会下载在约200MB数据，解压出来有724MB，需要保证你的home目录有足够的空间。
下载代码：
$ repo sync
dragonboard 410c bsp代码下载（下载完后会要求accept license才能继续安装）：
$ tools/bdk/brunch/brunch bsp download dragonboard
Downloading package qcom_dragonboard_bsp_code
Qualcomm Dragonboard 410c - Installed
* qcom_dragonboard_bsp_code
* device - Installed
* hardware_base - Installed
* hardware_kernel - Installed
* qcom_dragonboard_bsp_binaries
* vendor_binaries - Installed
- 编译
建立编译环境：
hzak@B85RPI:/local/brillo-m10-dev-410c$ . build/envsetup.sh including device/generic/brillo/vendorsetup.sh including device/generic/brillo/brilloemulator_arm64/base_product/devicesetup.sh including device/generic/brillo/brilloemulator_arm/base_product/devicesetup.sh including device/generic/brillo/brilloemulator_x86_64/base_product/devicesetup.sh including device/generic/brillo/brilloemulator_x86/base_product/devicesetup.sh including device/qcom/dragonboard/base_product/devicesetup.sh including device/generic/mini-emulator-arm64/vendorsetup.sh including device/generic/mini-emulator-armv7-a-neon/vendorsetup.sh including device/generic/mini-emulator-x86_64/vendorsetup.sh including device/generic/mini-emulator-x86/vendorsetup.sh including product/google/common/brillo_gpios/vendorsetup.sh including product/google/common/brillo_i2c/vendorsetup.sh including product/google/common/brillo_leds/vendorsetup.sh including product/google/example-ledflasher/vendorsetup.sh hzak@B85RPI:/local/brillo-m10-dev-410c$ lunch dragonboard-eng ============================================ PLATFORM_VERSION_CODENAME=REL PLATFORM_VERSION=6.0.1 TARGET_PRODUCT=dragonboard TARGET_BUILD_VARIANT=eng TARGET_BUILD_TYPE=release TARGET_BUILD_APPS= TARGET_ARCH=arm TARGET_ARCH_VARIANT=armv7-a TARGET_CPU_VARIANT=generic TARGET_2ND_ARCH= TARGET_2ND_ARCH_VARIANT= TARGET_2ND_CPU_VARIANT= HOST_ARCH=x86_64 HOST_2ND_ARCH=x86 HOST_OS=linux HOST_OS_EXTRA=Linux-3.16.0-30-generic-x86_64-with-Ubuntu-14.04-trusty HOST_CROSS_OS=windows HOST_CROSS_ARCH=x86 HOST_CROSS_2ND_ARCH=x86_64 HOST_BUILD_TYPE=release BUILD_ID=MASTER OUT_DIR=out ============================================
开始编译：
hzak@B85RPI:/local/brillo-m10-dev-410c$ make -j 4
- 运行
由于预装的是android系统，上电开机之后会自动运行，可以通过adb命令进入bootloader，再通过fastboot命令烧机：
hzak@B85RPI:/local/brillo-m10-dev-410c$ adb reboot-bootloader hzak@B85RPI:/local/brillo-m10-dev-410c$ out/target/product/dragonboard/provision-device target reported max download size of 268435456 bytes sending 'partition' (33 KB)... OKAY [ 0.005s] writing 'partition'... OKAY [ 0.667s] sending 'modem' (65536 KB)... OKAY [ 2.058s] writing 'modem'... OKAY [ 2.067s] sending 'fsc' (1 KB)... OKAY [ 0.010s] writing 'fsc'... OKAY [ 0.008s] sending 'sbl1' (512 KB)... OKAY [ 0.020s] writing 'sbl1'... OKAY [ 0.048s] sending 'sbl1bak' (512 KB)... OKAY [ 0.020s] writing 'sbl1bak'... OKAY [ 0.045s] sending 'rpm' (512 KB)... OKAY [ 0.020s] writing 'rpm'... OKAY [ 0.042s] sending 'rpmbak' (512 KB)... OKAY [ 0.020s] writing 'rpmbak'... OKAY [ 0.043s] sending 'tz' (512 KB)... OKAY [ 0.020s] writing 'tz'... OKAY [ 0.042s] sending 'tzbak' (512 KB)... OKAY [ 0.020s] writing 'tzbak'... OKAY [ 0.048s] sending 'hyp' (512 KB)... OKAY [ 0.020s] writing 'hyp'... OKAY [ 0.047s] sending 'hypbak' (512 KB)... OKAY [ 0.020s] writing 'hypbak'... OKAY [ 0.042s] sending 'modemst1' (1536 KB)... OKAY [ 0.052s] writing 'modemst1'... OKAY [ 0.113s] sending 'modemst2' (1536 KB)... OKAY [ 0.052s] writing 'modemst2'... OKAY [ 0.118s] sending 'DDR' (32 KB)... OKAY [ 0.005s] writing 'DDR'... OKAY [ 0.010s] sending 'fsg' (1536 KB)... OKAY [ 0.052s] writing 'fsg'... OKAY [ 0.131s] sending 'sec' (16 KB)... OKAY [ 0.005s] writing 'sec'... OKAY [ 0.007s] sending 'aboot' (505 KB)... OKAY [ 0.020s] writing 'aboot'... OKAY [ 0.040s] sending 'abootbak' (505 KB)... OKAY [ 0.020s] writing 'abootbak'... OKAY [ 0.041s] sending 'misc' (1024 KB)... OKAY [ 0.036s] writing 'misc'... OKAY [ 0.080s] sending 'boot_a' (15872 KB)... OKAY [ 0.501s] writing 'boot_a'... OKAY [ 1.160s] sending 'system_a' (60511 KB)... OKAY [ 1.902s] writing 'system_a'... OKAY [ 4.842s] sending 'boot_b' (15872 KB)... OKAY [ 0.507s] writing 'boot_b'... OKAY [ 1.003s] sending 'system_b' (60511 KB)... OKAY [ 1.902s] writing 'system_b'... OKAY [ 4.853s] erasing 'userdata'... OKAY [ 0.268s] sending 'userdata' (86868 KB)... OKAY [ 2.733s] writing 'userdata'... OKAY [ 6.377s] finished. total time: 32.159s
烧机后重启系统：
hzak@B85RPI:/local/brillo-m10-dev-410c$ fastboot reboot
rebooting...
finished. total time: 0.056s
开机之后，WiFi工作在AP模式，手机可以接入这个网络进行初步的配置（如将该设备接入家庭网络）。
设备的基本信息如下：
{
"authentication": {
"anonymousMaxScope": "none",
"crypto": [ "p224_spake2" ],
"mode": [ "anonymous", "pairing" ],
"pairing": [ "embeddedCode" ]
},
"basicModelManifest": {
"modelName": "DragonBoard",
"oemName": "Qualcomm Technologies, Inc.",
"uiDeviceKind": "developmentBoard"
},
"description": "Qualcomm DragonBoard 410c",
"endpoints": {
"httpPort": 80,
"httpUpdatesPort": 80,
"httpsPort": 443,
"httpsUpdatesPort": 443
},
"gcd": {
"id": "",
"oauth_url": "https://accounts.google.com/o/oauth2/",
"service_url": "https://www.googleapis.com/weave/v1/",
"status": "unconfigured",
"xmpp_endpoint": "talk.google.com:5223"
},
"id": "F1AA8DEB-39D9-4E79-BF3D-29D3E048086A",
"modelManifestId": "ABHNy",
"name": "Starter Board",
"services": [ "developmentBoard" ],
"sessionId": "511888408:3",
"time": 1458573208025.315918,
"version": "3.0",
"wifi": {
"capabilities": [ "2.4GHz" ],
"hostedSsid": "Starter Board 74.ABHNyDBprv",
"ssid": "",
"status": "unconfigured"
}
}
- 相关的参考文档：
- https://developer.qualcomm.com/hardware/dragonboard-410c
- https://www.96boards.org/products/ce/dragonboard410c/
pairing 是pinCode,如何获得access token呢?
{
“authentication”: {
“anonymousMaxScope”: “none”,
“crypto”: [ “p224_spake2” ],
“mode”: [ “anonymous”, “pairing” ],
“pairing”: [ “pinCode” ]
}
…
}
如果pairing为pinCode：
在brillo-m10-dev上看，可以看到在external/libweave/src/privet/security_manager.cc中，会随机生成4位数的pairing code:
case PairingType::kPinCode:
code = base::StringPrintf(“%04i”, base::RandInt(0, 9999));
break;
最终这个pairing code如何通知用户，需要vendor自已实现：
1. 如果有显示屏的话，可以直接显示出来；
2. 如果有speaker的话，可以通过语言播放出来。。。
而在ledflasher(product/google/example-ledflasher/src/ledflasher/ledflasher.cpp)中，它是这么做的：
void Daemon::OnPairingInfoChanged(
const weaved::Service::PairingInfo* pairing_info) {
LOG(INFO) << "Daemon::OnPairingInfoChanged: " << pairing_info; if (!pairing_info) return StopAnimation(); StartAnimation("blink", base::TimeDelta::FromMilliseconds(500)); } 这里，pairing_info中就包含了pairing code。
非常感谢！
1
1
$ curl -H “Authorization: Privet anonymous” -H ‘Content-Type: application/json’ -X POST \–data ‘{ “mode”: “anonymous”, “requestedScope”: “viewer” }’ -k \ https://localhost:8001/privet/v3/auth
{
“error”: {
“code”: “accessDenied”,
“debugInfo”: [ {
“code”: “accessDenied”,
“debugInfo”: “HandleAuth@external/libweave/src/privet/privet_handler.cc:606”,
“message”: “Scope ‘owner’ is not allowed”
} ],
“message”: “Scope ‘owner’ is not allowed”
}
}
请问，“设备的基本信息如下”
是通过什么看到的？
通过 curl -H “Authorization: Privet anonymous” -k https://localhost:8001/privet/info
该问题已经解决，谢谢！
您好，我是一名大四学生正在学习使用这款板。不知道版主知不知道如何用着块板子在kernel level产生PWMsignal。
从http://linaro.co/96b-hwm-db P15上看，可用的PWM pin脚在Low speed Expansion connector Pin28(PM_MPP_4)用于LCD backlight control, 你可以参考kernel/qcom/qcom-msm-3.10/arch/arm/boot/dts/qcom/apq8016-sbc.dtsi中的做法：
&dsi_jdi_1080_vid {
qcom,mdss-dsi-bl-pmic-control-type = “bl_ctrl_pwm”;
qcom,mdss-dsi-bl-pmic-pwm-frequency = <100>;
qcom,mdss-dsi-bl-pmic-bank-select = <0>;
qcom,mdss-dsi-pwm-gpio = < &pm8916_mpps 4 0>;
};
修改dts文件，同时按照kernel/qcom/qcom-msm-3.10/drivers/video/msm/mdss/mdss_dsi_panel.c的做法修改c代码。
你也可以参考这篇文档：https://developer.qualcomm.com/download/db410c/gpio-usage-low-speed-connector-application-note.pdf P8 – Controlling PMIC MPP
使用 snapdragon 410E（msm8916）的高通开发板，LCD driver使用tps65132，现在TPS65132的i2c已经注册成功，挂载在i2c_6上，但是无法写操作 测量clock和data一直保持1.8v，没有波形出来。 无法通信，请问问题可能出在哪里？
NACK: slave not responding, ensure its powered: msgs(n:1 cur:0 tx) bc(rx:0 tx:2) mode:FIFO slv_addr:0x3e
挂在这条总线上的其他i2c设备能正常通信吗？看情况像是i2c总线的pin脚选择有问题，请先参考下面两个文档：
https://developer.qualcomm.com/download/db410c/gpio-usage-low-speed-connector-application-note.pdf
https://developer.qualcomm.com/download/db410c/interfacing-grove-digital-light-i2c-sensor-application-note.pdf
1
